Transmission (Family, exposure) history

Family history is sometimes important in diagnosis.  Although there are situations in which an elaborate family pedigree is needed, in many situations one can get far with some basic data.

Example to work through

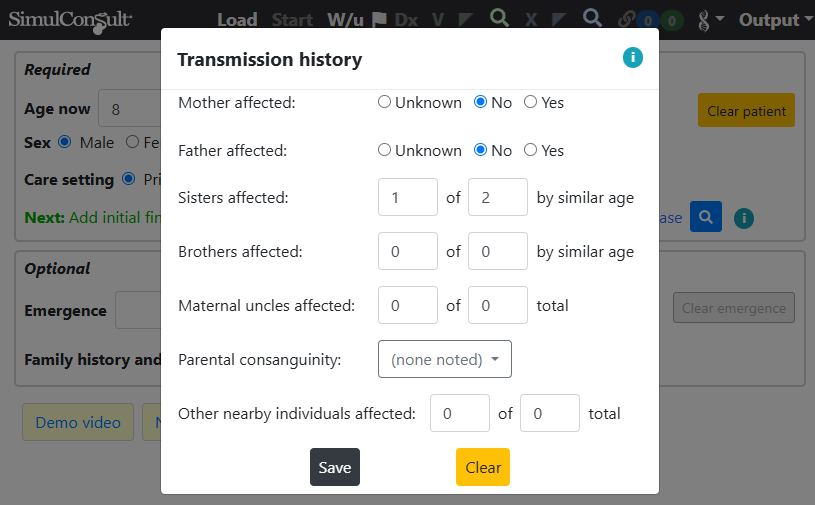

One can specify family history from the Start screen of the software by clicking the light green Transmission button.  Here you can indicate that the parents are unaffected but one of 2 older sisters is affected, a history suggestive of autosomal recessive inheritance:

Adding family history of parents unaffected and one of 2 sisters affected

This is a positive family history, denoted by a green check mark on the Transmission button:

The family history is recorded as present

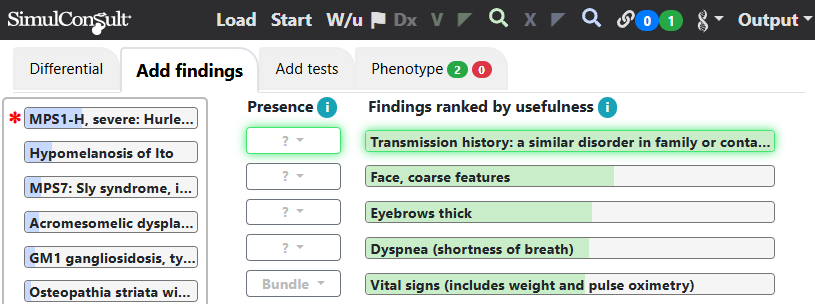

Often one doesn’t start out by discussing family history, but family history can be suggested as useful, as shown here for an 8-month-old boy with recent onset of kyphosis and macrocephaly:  (Click the images below to jump into the software.)

Transmission history being suggested as useful in a patient with recent onset of macrocephaly and kyphosis

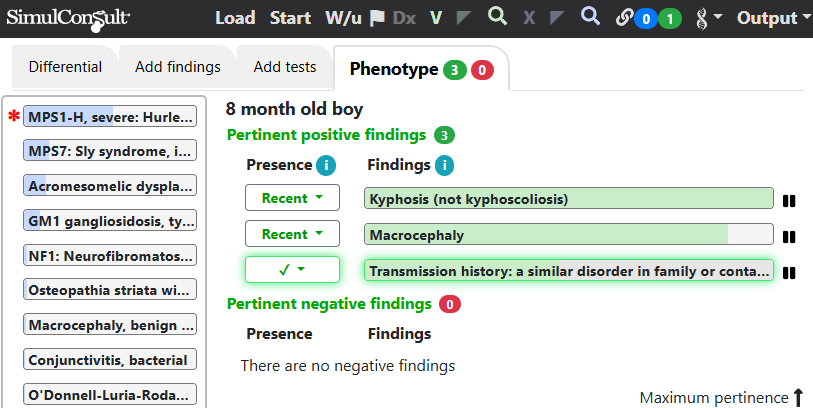

Clicking the component to the left of the Transmission History finding, one call fill in the positive family as illustrated in the first image. This increases the probability of recessive diseases such as MPS1 and MPS7:

Recessive diseases have become more likely because of the family history that fits with recessive inheritance

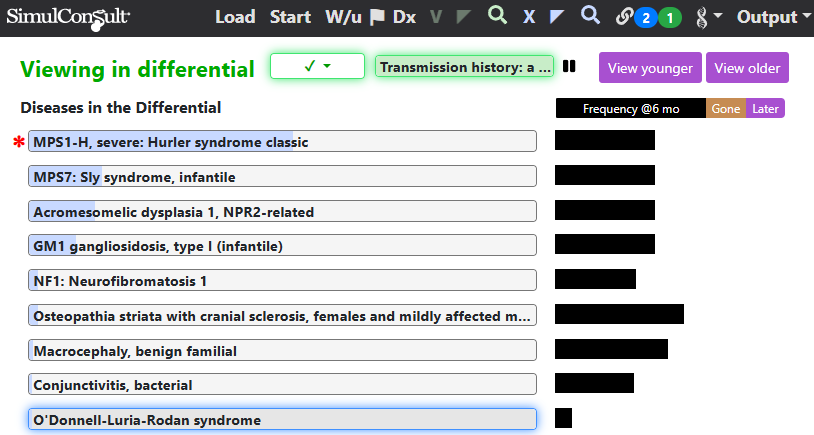

One can view the expected family history for the diseases in the differential diagnosis by clicking on the green V on the top black navigation bar. For recessive diseases, a family history of unaffected parents and an affected sibling is common. In contrast, for “O’Donnell-Luria-Rodan syndrome”, a dominant disease with a high de novo mutation rate, it is unlikely that one would expect an affected sister.

Expected family history in diseases in the differential diagnosis

As seen in this example, family history can have a significant effect on the differential diagnosis, and the error in not using it is that there is less data to inform the differential diagnosis.
